    Large Spacing Grille LED Display Screen Gmesh DIP P15.625-31.25 IP65 Rated Outdoor High Transparency

    Ask Lasest Price
    Brand Name : GCL
    Model Number : Gmesh 15.625-31.25
    Certification : EMC/CE/ROHS/CCC/FCC/BIS
    Price : Negotiable
    Supply Ability : 2000 Square Meter/Square Meters per Month
    Delivery Time : 15-22Days
    • Product Details
    • Company Profile

    Large Spacing Grille LED Display Screen Gmesh DIP P15.625-31.25 IP65 Rated Outdoor High Transparency

    Outdoor high transparency large spacing grille display screen Gmesh DIP P15.625-31.25

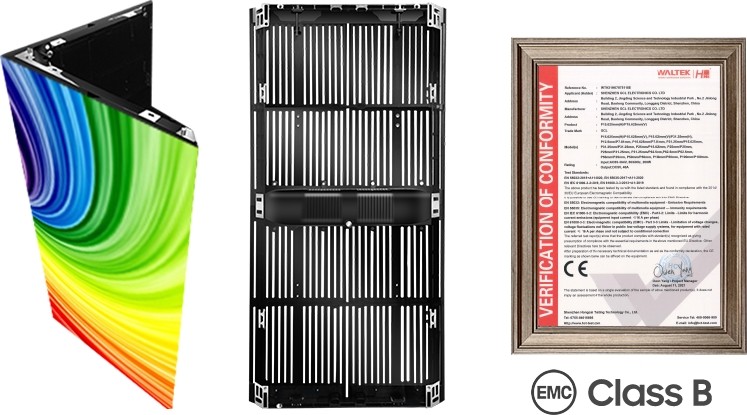

    Gmesh Series--Outdoor Fixed Installation Product:

    1. The first national 15.625-31.25 grille screen product;Horizontal spacing 15.625, vertical spacing 31.25mm, transparency rate of 60%


    2.Module size: Width 500mm x Height 250mm; cabinet size: Width 1000mm x Height 500mm;


    3.Brightness: ≥ 8000 cd/㎡;


    4.The product has a protection level of IP65 before and after, suitable for various weather conditions


    5. Right-angle and curved free splicing, seamless splicing at four sides at 90 degrees, can splice at ± curvature;


    6. Weight: ≤ 18kg/㎡;


    7.Maintenance method: Supports front and rear maintenance, easy to disassemble and maintain;


    8.Easy Maintenance:Loose 8 screws to dismount each module,Loose 8 screws to dismount the front cover, then dismount the power supply, receiving card and HUB card

    9.EMC Class-B certificated:Our products are EMC Class-B certificated,Safer and more environment

    Parameters of Gmesh Series


    NameGmesh16-CGmesh25Gmesh31.25
    Module
    LED TypeDIP346DIP346DIP346
    Pixel Pitch(mm)31.25-15.62525-31.2531.25
    Module Resolution8*3220*88*16
    Module Size(mm)250*500500*250250*500
    Scan MethodStaticStaticStatic
    Cabinet
    UnitResolution2*22*22*2
    Cabinet Resolution16*6440*1616*32
    Cabinet Size(mm)500*1000*501000*500*50500*1000*50
    Cabinet Weight15kg14kg14kg
    Densiy (pixels/㎡)204812801024
    Brightness(nits/㎡)1000080008000
    Viewing AngleH100°,V50°H100°,V50°H100°,V50°
    Transparency50%60%65%
    Max Power Consumption/m²400W400W400W
    Average Power Consumption/㎡120W120W120W
