Model Number : | Gspark |
Brand Name : | GCL |
Price : | Negotiable |
Certification : | EMC/CE/ROHS/CCC/FCC/BIS |
Supply Ability : | 5000 Square Meter/Square Meters per Month |
Delivery Time : | 15-22Days |
HD Indoor LED Display Screen Vidoe Wall Full Color SMD1515P1.5, P1.8,P2
HD Narrow Pixel Pitch
100% front maintenance.
This indoor LED panel is usually be used for:
Parameters of Gspark Series
Product | P1.5 | P1.86 | P2 | P2.5 |
Pitch | 1.538mm | 1.86mm | 2mm | 2.5mm |
Density(pixels/m²) | 422500 | 288906 | 250000 | 160000 |
LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 |
Brightness | 600nits | 700nits | 700nits | 700nits |
Scan Method | 1/52 | 1/43 | 1/40 | 1/32 |
Panel Size | 640×480mm | |||
Module Size | 320×160mm | |||
Panel Material | Die-casting Aluminum | |||
Panel Weight | 7 kg | |||
Protection Level | IP31 | |||
Maintenance | Full Front Service | |||
Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ |
Average Power Consumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ |
Refresh Rate | 3840Hz | |||
Grey Scale | 13~16bit | |||
Viewing Angle | H160°,V160° | |||
Voltage | AC100~240V(50-60Hz) | |||
Working Temperature | -20℃to 60℃ | |||
Working Humidity | 10%-90%RH | |||
Color Temperature | 3000-9500K | |||
Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO |

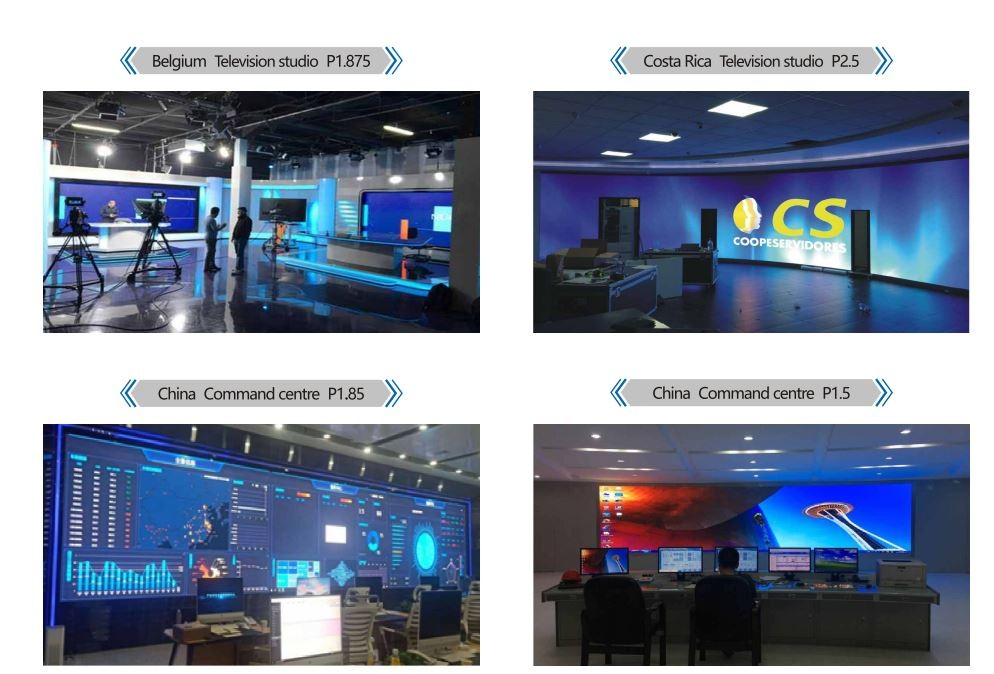

Show Case And Other:
![]() |
