Model Number : | Gsport |
Brand Name : | GCL |
Supply Ability : | 2000 Square Meter/Square Meters per Month |
Price : | Price to be discussed |
Certification : | EMC/CE/ROHS/CCC/FCC/BIS |
Product | P6 | P8 | P10 | ||
Pitch(mm) | 6 | 8 | 10 | ||
Density(pixels/m2) | 27777 | 15625 | 10000 | ||
LED Type | SMD3535 | ||||
Brightness(nits) | 60000 | 6000 | 6500 | ||
Scan Method | 1/8 | 1/4 | 1/3 | ||
Cabinet Size(mm) | Customized | ||||
Module Size | 192*192 | 256*128 | 320*160 | ||
Cabinet Material | Magnesium Diecasting | ||||
Cabinet Weight | 35kg/m2 | ||||

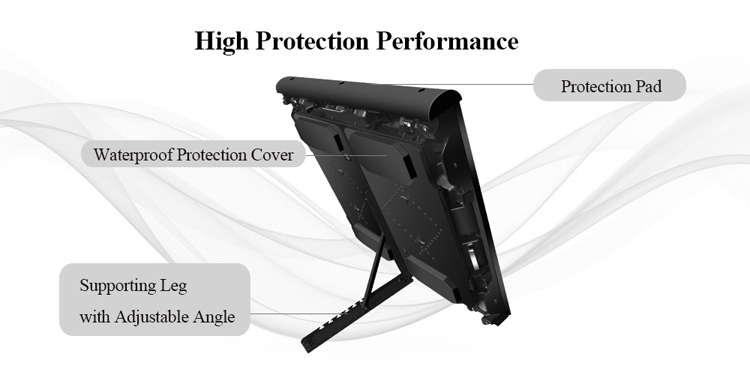

Protection Level | IP65 | ||||
Cabinet Maintenance | Rear Service | ||||
Max Power Consumption | 750w/m2 | 800w/m2 | 720w/m2 | ||
Average Power Consumption | 250w/m2 | 300w/m2 | 240w/m2 | ||
Refresh Rate | 2880-3840HZ | ||||
Grey Scale | 16 bit | ||||
Viewing Angle | H140o,V140o | ||||
Voltage | AC100~240V(50-63Hz) | ||||
Working Temperature | -30 oC - + 65 oC | ||||
Working Humidity | 10% -- 90%RH | ||||
Color Temperature | 6500-9500K | ||||
Certificationa | EMC/CE/ROHS/CCC/FCC/ISO |
![]() |
