Front Service Full Color LED Video Wall for Outdoor Advertising
Brightness 10000cd/㎡; P2.5P3P4P5.9|6.67P8P10(DIP )P16(DIP)
Double Waterproof Design: Both cabinet and module are waterproof
High Brightness
Gold bonding wire DIP LED with stable driving IC ensures the high
brightness of 10,000nits and long lifespan of modules.
High Refresh Rate
The image on the LED screen is formed perfectly. One of the reasons
is that the refresh rate can reach 3,840Hz.
High Protective Grades
3 layers of high-quality conformal coating protects the driving IC
and other electron components from dust and humidity. Strong signal
cable brings more security and the cables look neat.
Great Gray Scale
Most LED screens from other suppliers have a low gray scale, so
some of the colors can't be displayed on the screen, and the image
on the LED screen appears like a ghost image. Our LED screen grays
cale is 13bits ~ 16bits. It is very high so the image looks very
vivid and perfect.
Stable Outdoor Fixed Installation
The LED display cabinet is made of steel material or aluminum
material. We adopt the best materials and great crafts to
manufacturing this LED display. Therefore, the LED screen functions
are very stable in outdoor scenes.
Visual Performance
High Contrast: The contrast ratio of the LED screen gives sharp
image quality.
High Brightness: The brightness of the LED display can be up to
10,000nits. Even if the screen is facing the direct sunlight, the
image still looks clear.
Stable Performance, Reliable Quality
We have sold many LED screens to different countries and regions
like America, Europe, Middle East, Africa, etc.
Many of our screens have been working for more than 5 years, and
they are still working properly. Our LED screens are a great
solution for outdoor advertising billboards.

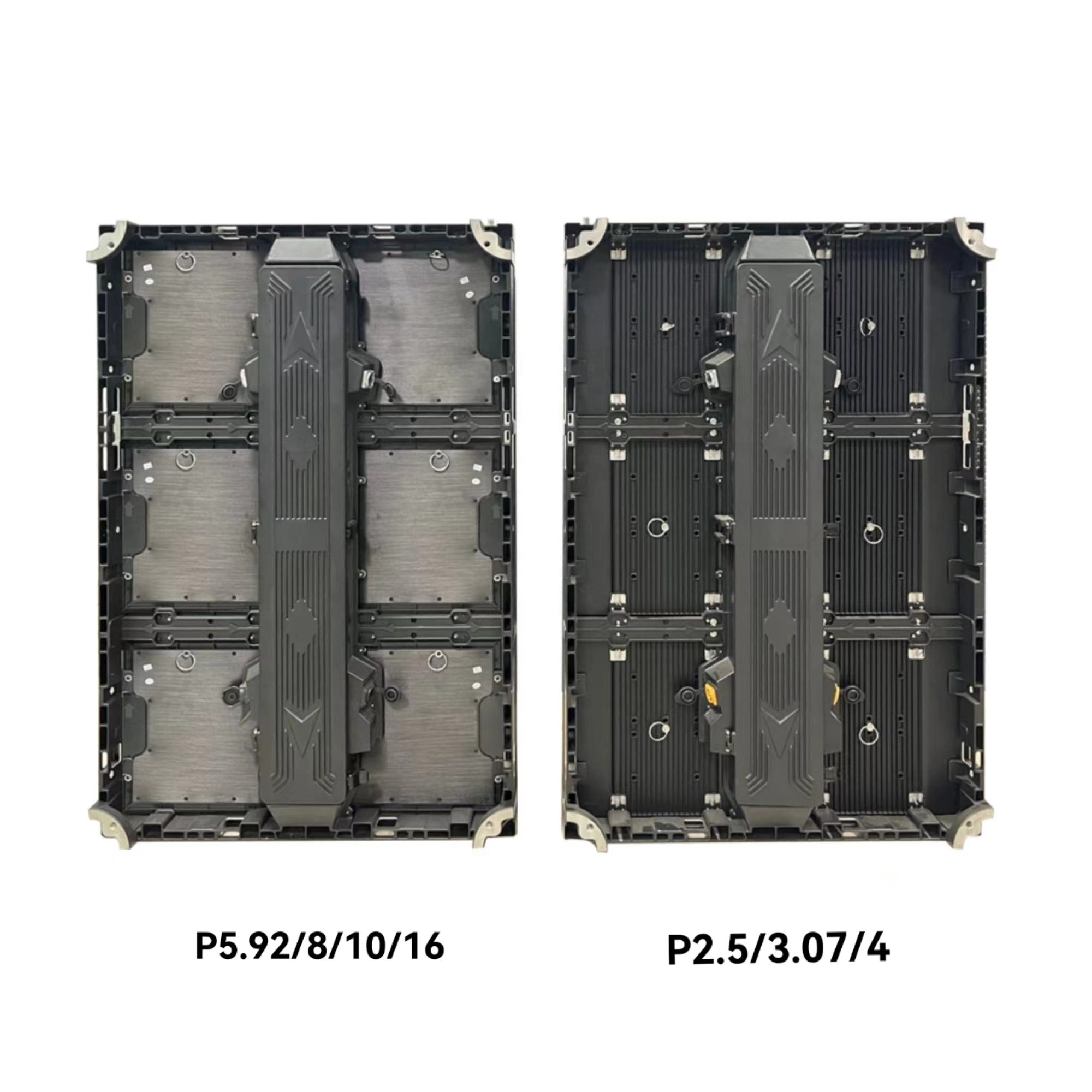

High-end Design:
Diecasting Aluminum Cabinet,High-end Module,Fan-less,Noiseless；
Parameters of Gpro Series:
| Name | P5.7 | P8 | P10A | P10B | P16 |
| Module |
| LED Type | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 |
| Pixel Pitch(mm) | 5.7 | 8 | 10 | 10 | 16 |
| Module Resolution | 56*56 | 40*40 | 32*32 | 32*32 | 20*20 |
| Module Size(mm) | 320*320*25 | 320*320*25 | 320*320*25 | 320*320*30 | 320*320*30 |
| Scan Method | 1/7s | 1/4s;1/2s | 1/2s | 1/4s | Static |
| Cabinet |
| Unit Resolution | 2*3 |
| Cabinet Resolution | 112*168 | 80*120 | 64*96 | 64*96 | 40*60 |
| Cabinet Size(mm) | 640*960*100 | 640*960*105 |
| Cabinet Area(m²) | 0.6144 |
| Cabinet Material | Die-casting Aluminum/SPCC |
| Cabinet Weight | 17kg | 18.6kg | 16.2kg | 25kg | 18kg |
| Densiy (pixels/m²) | 30625 | 15625 | 10000 | 10000 | 3906 |
| Protection Level | Front &Rear IP65 |
| Optics |
| Brightress (nits) | 6500 | 7000 | 7000 | 10000 | 10000 |
| Calibration | Support Single-dot Calibration |
| Color Temperature | 1700-9500K Adjustable |
| Viewing Angle | H140°,V140° | H120°,V100° |
| Light Decay Rate | <3% |
| ContrastRatio | ≥9000:1 |
| Grey Scale | 13-16bit |
| Electric |
| Max Power Consumption/m² | 680w | 700W | 700W | 390W | 390W |
| Average Power Consumption/m² | 230W | 240W | 240W | 130W | 130W |
| Cabinet Maintenance | Full Front/Rear Service |
| Input Voltage | AC100~240V(50-60Hz) |
| Performance |
| Drive Mode | Constant Current Drive |
| Refresh Rate | ≥3840Hz |
| Frame Rate | 50Hz/60Hz |
