Transparent Mesh LED Display ScreenP7.8-3.9 P15.6-31.25mm IP65 500*1000mm High Brightness

1. The first national 7.8-3.9 grille screen product;
2. High safety performance: The product has passed international ClassB certification and has excellent flame retardant and heat dissipation effects. It has extremely high safety performance and can be used with confidence.
3. High product transparency: with a light transmittance of up to 50%; Installing outdoors does not affect indoor lighting.
4. Diversified creative installation: can support up to 90 degree external arc installation (right angle installation), and can achieve creative displays such as internal and external arcs,

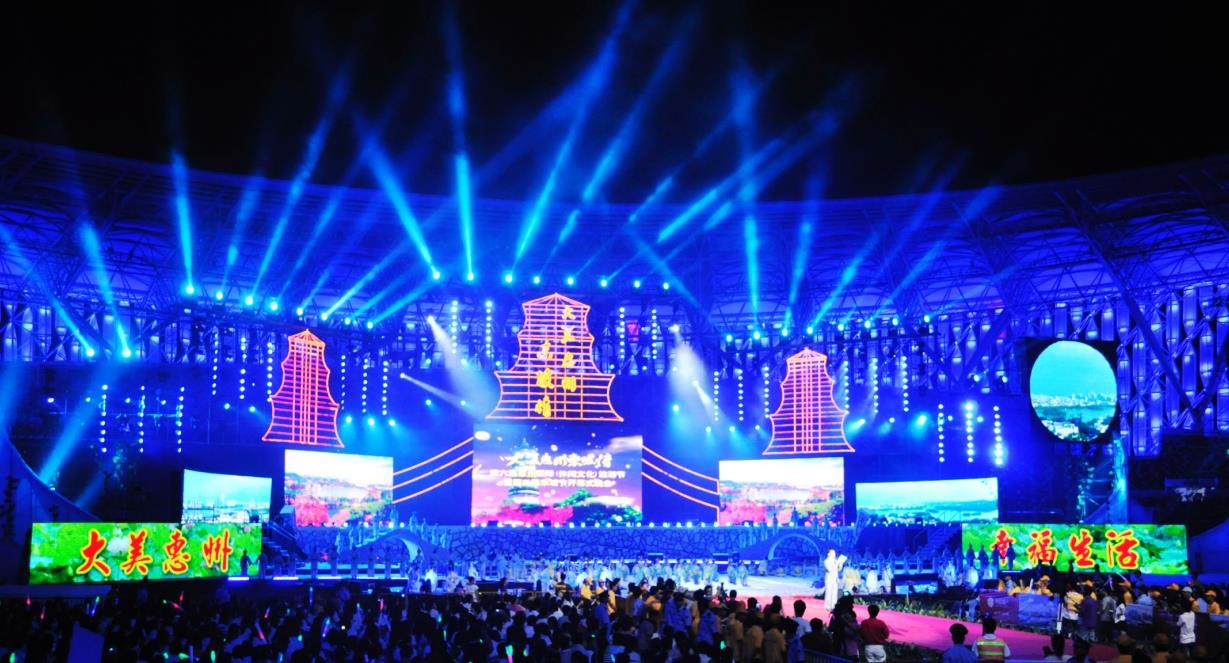

5. Multi scenario use: can be used in two scenarios: stage rental and outdoor fixed screen.
6. Support full front maintenance (power supply, card, module can be removed from the front), and can also be installed for rear maintenance;

7.using full die cast aluminum box, box size 500 * 1000 * 45mm, module size 250 * 500mm;
8.The lightest weight of the box is about 8kg;
8.The refresh rate is as high as 3840Hz, and the white balance brightness is ≥ 8000cd/㎡;
10.Support single point correction, color temperature 6500-9500K manually adjustable;
11.The minimum average power consumption is 120W;
12.Visual angles H140 °, V120 °;
13.Can be fully maintained before/after.
14.The product has a protection level of IP65 before and after, suitable for various weather conditions

Parameters of Gmesh Series
