Brand Name : | GCL |
Model Number : | Gsurface V |
Certification : | EMC/CE/ROHS/CCC/FCC/BIS |
Price : | Price to be discussed |
Delivery Time : | 7-20 days |

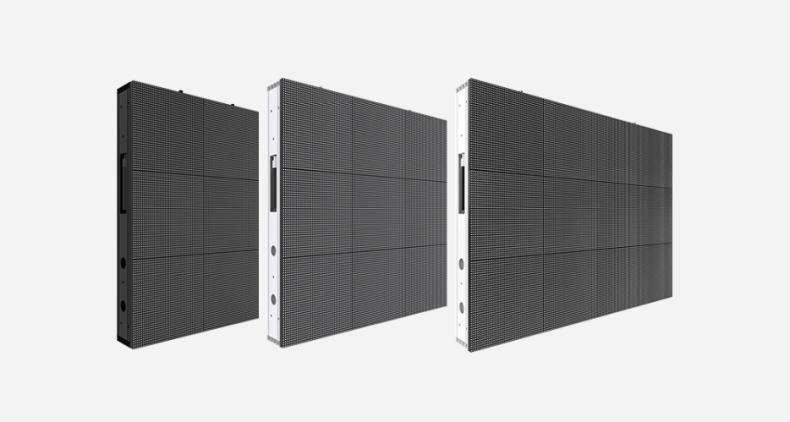

The Gsurface-V series is our company's main outdoor display product.
This model features an aluminium case with a double waterproof design, convenient maintenance from both front and back, excellent display effects, and stable performance. The standardised 1000*1000mm cabinet is compatible with various pixel pitches, and the overall waterproof rating of the product reaches IP65, allowing for outdoor installation without additional housing.
The modules are designed to prevent dust accumulation and water ingress. It is widely used in outdoor advertising media,
urban landmarks, naked-eye 3D displays, and highway advertisements.
Product Features:
Large module for easy maintenance
Supports dual voltage for energy efficiency
Exceptional heat dissipation design
Convenient installation with concealed wiring
Front and rear maintenance support
Customisable in various sizes
Parameters of GsurfaceV Series:
Product | P6.25 | P7.81 | P10.4 |
Pitch | 6.25mm | 7.81mm | 10.4mm |
Density(pixels/m²) | 25600 | 16384 | 9216 |
LED Type | SMD2727 | SMD2727 | SMD2727 |
Brightness | 6500nits | 6500nits | 6500nits |
Scan Method | 1/6 | 1/4 | 1/2 |
Panel Size | 1000×1000×78mm | ||
Module Size | 500×250mm | ||
Panel Material | Profile Aluminum | ||
Panel Weight | 29kg | ||
Protection Level | IP65 | ||
Maintenance | Front&Rear Service | ||
Max Power Consumption | 650W/㎡ | 650W/㎡ | 650W/㎡ |
Average Power Consumption | 210W/㎡ | 210W/㎡ | 210W/㎡ |
Refresh Rate | 3840Hz | ||
Grey Scale | 13-16bit | ||
Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° |
Voltage | AC100~240V(50-60Hz) |
![]() |
