    Gsurface IV High Brightness Fixed P8 P10mm Outdoor Led Display for Airport IP Rating IP65

    Ask Lasest Price
    Brand Name : GCL
    Model Number : Gsurface IV
    Certification : EMC/CE/ROHS/CCC/FCC/BIS
    Price : Price to be discussed
    Delivery Time : 15-20Days
    • Product Details
    • Company Profile

    Gsurface IV High Brightness Fixed P8 P10mm Outdoor Led Display for Airport IP Rating IP65

    GCL High Brightness Billboard Advertising Fixed P6.67 P8 P10mm Screen Naked Eye 3d Waterproof Outdoor Led Display

    Product Features:

    45° module, can be assembled into right angles

    · Widely used in outdoor naked-eye 3D commercial advertising design
    Low power consumption, high performance · Minimum power consumption 120W,
    · stable operation 24 hours a day,
    · module life up to 100,000 hours,
    · energy saving effect up to 70% than traditional ordinary screens

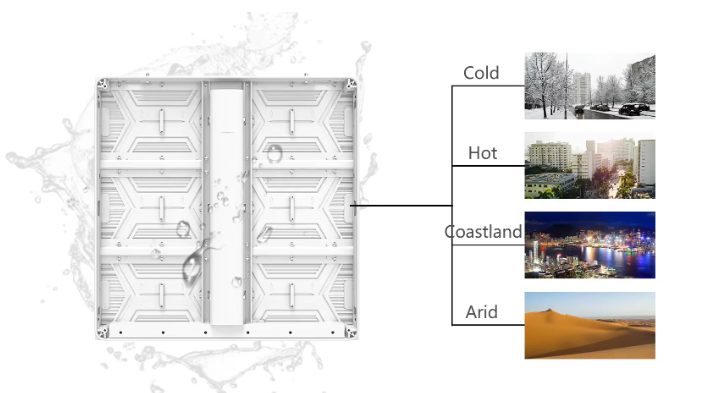

    Fully enclosed module, good waterproof effect

    · Matching professional waterproof box and waterproof module,

    · protection level up to IP65, dustproof, moisture-proof, corrosion-proof, etc.,
    · suitable for use in all kinds of bad weather
    Efficient self-heat dissipation performance
    · The back of the power box is designed with all-aluminum material for more even heat dissipation.
    · The power box has a built-in fan for heat dissipation, which enhances heat dissipation capacity and ensures stable operation 24 hours a day.
    ProductP4P5.71P6.67P8P10
    Pitch4mm5.71mm6.67mm8mm10mm
    Density(pixels/m²)6250030625225001562510000
    LED TypeSMD1921SMD2727SMD2727SMD2727SMD2727
    Brightness5500nits6500nits6500nits6500nits6500nits
    Scan Method1/81/71/61/41/2
    Panel Size960×960mm
    Module Size480×320mm
    Panel MaterialProfile Aluminum
    Panel Weight30kg/sq.m30kg/sq.m29.5kg/sq.m29.5kg/sq.m29.5kg/sq.m
    Protection LevelIP65
    MaintenanceFront&Rear Service
    Max Power Consumption600W/㎡650W/㎡650W/㎡650W/㎡650W/㎡
    Average PowerConsumption200W/㎡210W/㎡210W/㎡210W/㎡210W/㎡
    Refresh Rate3840Hz
    Grey Scale13-16bit
    Viewing AngleH140°,V120°H140°,V120°H140°,V120°H140°,V120°H140°,V120°
    VoltageAC100~240V(50-60Hz)

    Main parameters of Gsurface IV:
