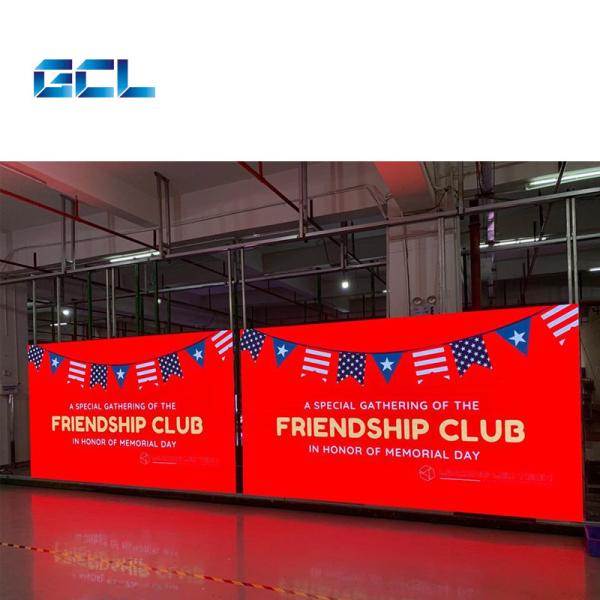

GCL LED Gstar II indoor500*1000mm P2.5mm high-definition indoor fixed installation LED
video wall
Model Number: P1.95 P2.5 P2.6, P2.97,
Large Single Unit, Quick Installation
The large cabinets measuring 500×1000mm / 500×750mm reduce material
costs while accelerating installation speed, resulting in lower
operational costs.
Supports Full Front Maintenance
In narrow spaces or areas without designated maintenance passages,
full front maintenance can be selected, allowing modules, power
supplies, and HUBs to be maintained from the front.
If there is a maintenance passage, rear maintenance can be chosen
for added convenience and speed.
Wall-Mountable Installation
With a lightweight design and front maintenance capability,
wall-mounted installation significantly simplifies the traditional
installation process, improving efficiency and effectively freeing
up space for a clean and aesthetic appearance.
Stable Hard Connections for Modules
Modules are directly connected to the cabinets using HUB card
instead of module cables, reducing cable constraints. The stable
and secure plug-and-play connections enable quicker operations
while maintaining a clean and aesthetic appearance.
Supports 90° Angle Screen Design
Supports 45° angle splicing, allowing for a 90° LED screen design.
Stable Hard Connections for Modules
Modules are directly connected to the cabinets using HUB card
instead of module cables, reducing cable constraints. The stable
and secure plug-and-play connections enable quicker operations
while maintaining a clean and aesthetic appearance.
Product specifications:
| Gstar-II |
| Parameter Name | P1.95 | P2.5 | P2.604 | P2.976 |
| Module |
| LED Type | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Pitch(mm) | 1.953 | 2.5 | 2.604 | 2.976 |
| Module Resolution | 128×128 | 100×100 | 96×96 | 84×84 |
| Module Size(mm) | 250×250 |
| Scan Method | 1/32s | 1/25s | 1/32s | 1/28s |
| Cabinet |
| Module Quantity | 2×4 |
| Cabinet Resolution | 256×512 | 200×400 | 192×384 | 168×336 |
| Cabinet Size(mm) | 500×1000×45 |
| Cabinet Area(m²) | 0.5 |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Weight | 15kg |
| Density(pixels/㎡) | 262144 | 160000 | 147456 | 112896 |
| Protection Level | IP34 |
| Optics |
| Brightness(nits) | 1000nits | 1000nits | 1200nits | 1200nits |
| Calibration | Support Single-dot Calibration |
| Color Temperature | 3000-9500K Manual Adjustment |
| Viewing Angle | H160,V140° |
| Light Decay Rate | 3% |
| Contrast | 6000:1 |
| Gray Scale | 13~16bit |
| Electric |
| Max Power Consumption/㎡ | 450W | 550W | 550W | 550W |
| Average Power Consumption/㎡ | 150W | 180W | 180W | 180W |
| Cabinet Maintenance | Front&Rear Service |
| Input Voltage | AC100~240V(50-60Hz) |
| Performance |
| Drive Mode | Constant Current Drive |
| Refresh Rate | 7680Hz |
| Frame Rate | 50Hz/60Hz |
